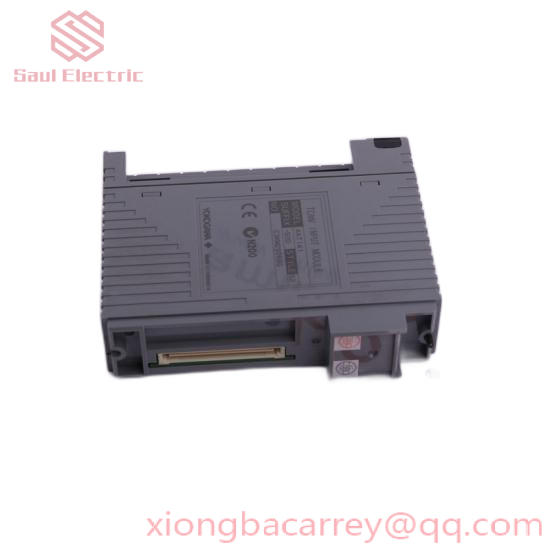

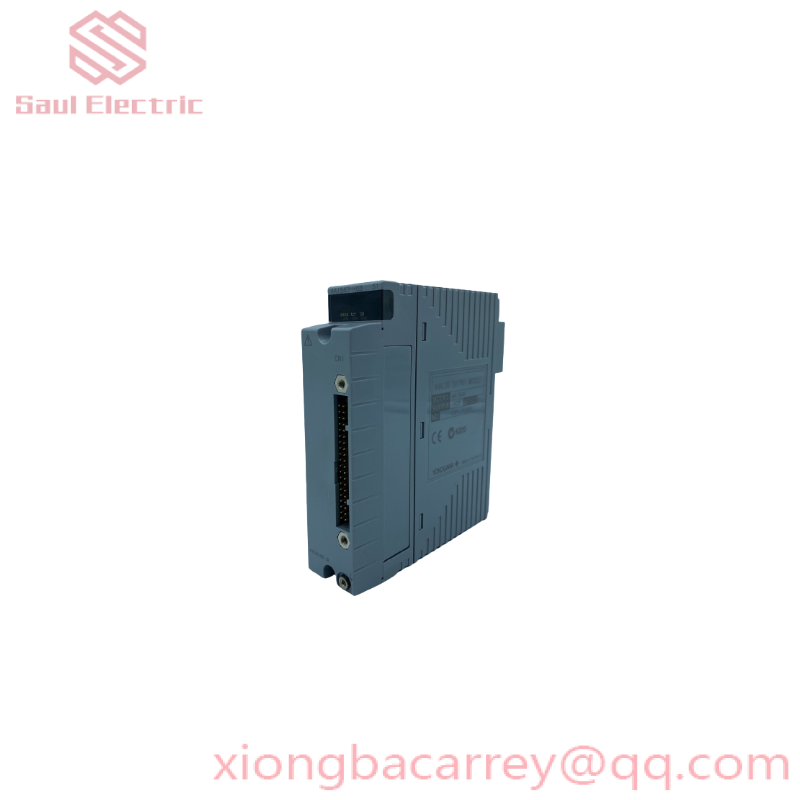

Yokogawa AAI543-H03 High Precision General Analog I/O Modules

Yokogawa AAI543-H03 High Precision General Analog I/O Modules

    The Yokogawa AAI543-H03 is designed for high precision analog input/output applications within industrial automation systems. It offers superior accuracy and reliability, making it ideal for complex manufacturing environments.

Extended Product Type:PLC

Product ID:AAI543-H03

Type Designation:PLC

Product Type:Current Output Modules

Number of Output Channels:16, isolated

Output Signal:4 to 20 mA

Maximum Current Consumption:230 mA (5 V DC), 540 mA (24 V DC)

Suffix Codes:H=With HART Communication, 3=With ISA Standard G3 option and temperature

Weight:0.4 kg

    The Yokogawa AAI543-H03 is built with high precision components ensuring stable and accurate analog signal transmission and reception. Its design includes 16 isolated output channels capable of handling signals between 4 to 20 mA, making it suitable for complex industrial environments where isolation is critical.

    The module supports HART communication protocol, enabling efficient data exchange and integration with other HART-enabled devices. This feature is particularly useful in modern automation systems where real-time monitoring and control are essential.

    Featuring an operating temperature range from -40°C to +85°C, the AAI543-H03 is designed to withstand harsh industrial conditions, ensuring consistent performance even in extreme environments. Its compact size and lightweight design make installation easy and space-saving.

    With a maximum current consumption of 230 mA at 5 V DC and 540 mA at 24 V DC, the module efficiently manages power usage without compromising on performance. The AAI543-H03 also boasts an isolation voltage of 1500 V AC, providing additional safety and reliability in electrical circuits.
