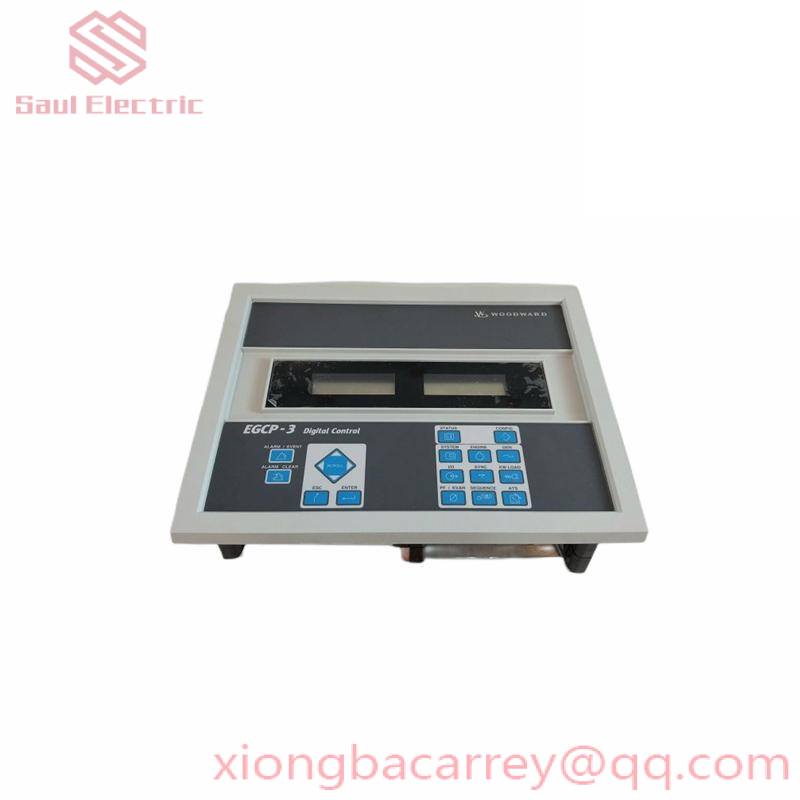

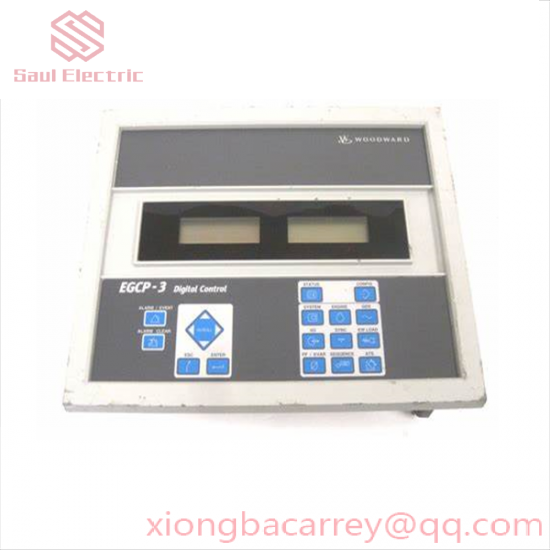

WOODWARD EGCP-3 8406-113 Engine Generator Control Module
The WOODWARD EGCP-3 8406-113 is a high-performance load sharing module designed for engine generator control packages. It facilitates seamless operation and coordination among multiple generator sets by regulating the power output according to demand, making it ideal for industrial applications requiring reliable power management.
Dimensions:282H x 359W x 135D mm
Features:Speed Bias: 4–20 mA, 0–5 V, PWM, or ±3 V output; Input Voltage: 18-32 V dc; Manufacturer: Woodward; Operating Temperature: –20 to +70 °C; Slot Type: 3 Serial Ports; Standards: NEMA 4 when properly installed; Storage Temperature: –30 to +80 °C; Weight: 4.3 kg (9.5 pounds)
Certifications:UL certified for Class I, Division 2, Groups A, B, C, and D (Canada and US); Suitable for non-hazardous locations only
Compatibility:Suitable for use with other EGCP-3 controls to manage generator sets and utility mains paralleling.
The Woodward 8406-113 is part of the Woodward EGCP-3 Engine Generator Control Package. This advanced control module is designed for high performance and reliability, making it ideal for industrial applications where precision and durability are critical.
This microprocessor-based control system ensures smooth and efficient operation of generator sets and utilities by facilitating seamless communication between control units. With its robust design and versatile output options, the 8406-113 is capable of handling a wide range of input voltages, making it adaptable to various operational environments.
Key features include three serial ports for enhanced connectivity, operating within extreme temperature ranges from -20°C to +70°C, and storage capabilities up to -30°C to +80°C. Its compact dimensions and lightweight make it easy to install and integrate into existing systems.
Designed with safety in mind, the 8406-113 complies with NEMA 4 standards when properly installed, ensuring protection against dust, water, and other environmental factors. Ideal for use in Class I, Division 2 hazardous locations as per UL for Canada and US, or non-hazardous locations.
For seamless integration with other Woodward control units, the 8406-113 provides reliable communication channels and superior supervisory functions, enhancing overall system efficiency and performance.
