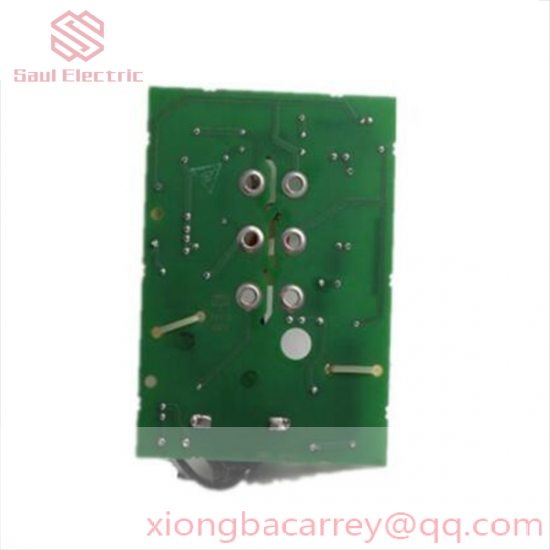

GE DS200SSBAG1B Snubber Board – EX2000 Series Module for Turbine Control Systems

GE DS200SSBAG1B Snubber Board – EX2000 Series Module for Turbine Control Systems

    The DS200SSBAG1B Memory Module serves as a Snubber Card for the EX2000 system, playing a critical role in protecting electronic circuits from voltage spikes in GE‘s turbine control systems.

Manufacturer:General Electric

Model:DS200SSBAG1B

Category:Memory Modules

Functionality:Snubber Card

Compatibility:EX2000 System

Series:Mark V

Weight:0.54 kg

Connectors:One 2-pin connector

Capacitors:Three capacitors (MOV1, MOV2, MOV3)

Additional Features:PCB protective coating, B-rated primary functional product revision, A-rated secondary functional product revision

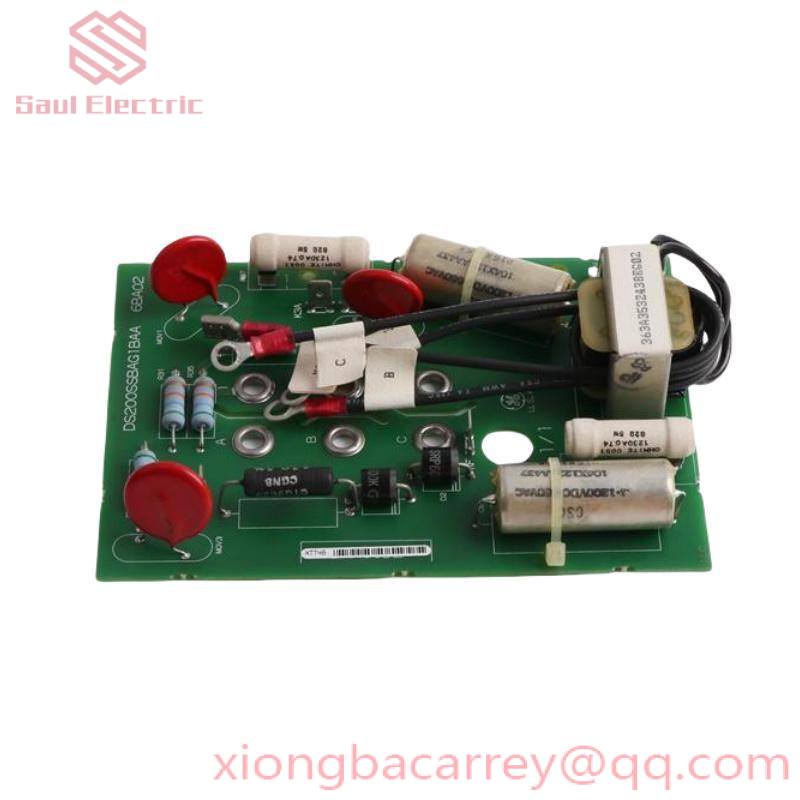

    The DS200SSBAG1B Snubber Storage Module is meticulously engineered for use in General Electric’s EX2000 system within the Mark V series of turbine controls.

     Featuring a robust design, this module includes one 2-pin connector and three capacitors for efficient surge protection.

     Each capacitor, labeled MOV1, MOV2, and MOV3, is strategically placed to ensure maximum stability and safety under varying operational conditions.

     Its compact size makes it easy to integrate into existing setups without requiring extensive modifications.

     This module is coated with a protective layer that enhances durability against environmental factors, ensuring longevity and reliable performance over time.
