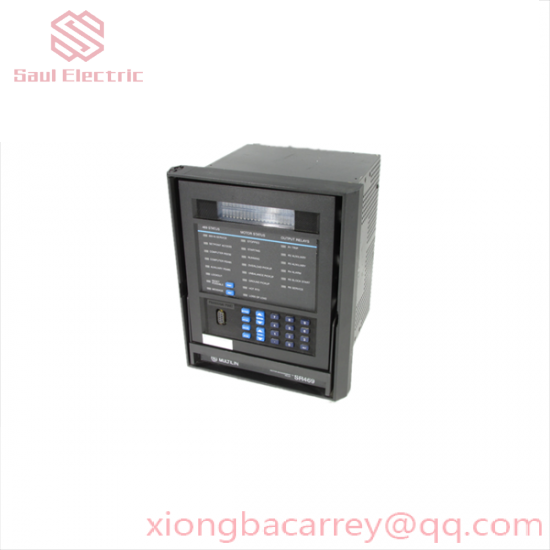

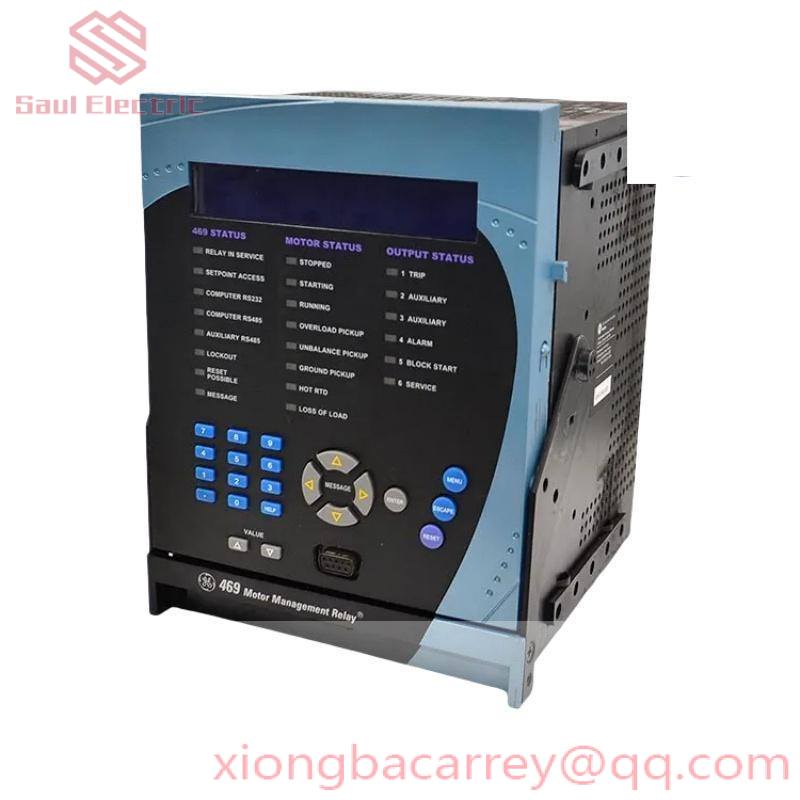

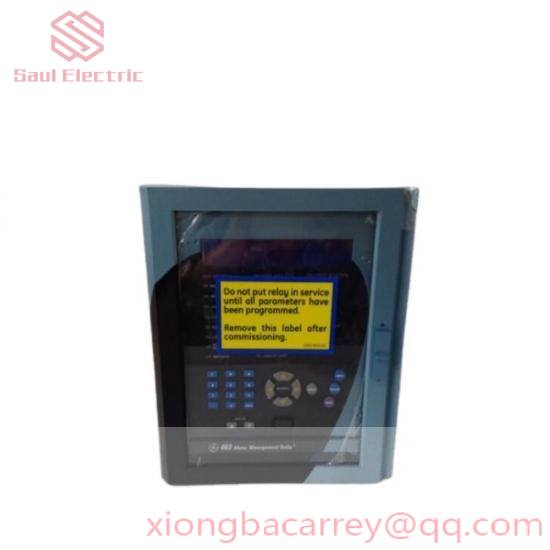

GE 469-P5-HI-A20 Motor Management Relay with Enhanced Features

GE 469-P5-HI-A20 Motor Management Relay with Enhanced Features

    The GE 469-P5-HI-A20 is a versatile Motor Management Relay designed to enhance the safety, efficiency, and longevity of your motor systems. It features multiple RTD inputs for temperature monitoring and control, as well as enhanced protection options including conformal coating for harsh environments. This relay integrates seamlessly with the EnerVista 469 software for advanced diagnostics and troubleshooting.

Phase Current Inputs:1 A

Phase CT Secondaries:5 A

Control Power:90-300VDC and 70-265VAC at 48-62Hz

Analog Outputs:Four 4-20mA Analog Outputs

Display:Standard Harsh Environment

Environmental Protection:Harsh (chemical) environment conformal coating

Software:EnerVista 469 Setup

Line Voltage:90-300VDC, 70-265VAC

Enclosure Rating:20-X

Frequency:48-62Hz

Current:390/500 MA (MAX)

Overvoltage Category:II

Insulation Voltage:300 V

Pollution Degree:2

Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)

    The GE Multilin 469-P5-HI-A20 Motor Management Relay is an advanced solution for motor protection and management.

     Equipped with multiple RTD inputs, it precisely determines the motor’s temperature and the hottest point within the system, ensuring optimal performance and longevity.

     This relay operates seamlessly with the EnerVista 469 software, providing a comprehensive suite of capabilities including detailed metering, safeguarding against overloads and faults.

     Its rugged design, including an optional conformal coating, makes it ideal for deployment in challenging industrial environments.

     The 469-P5-HI-A20 is engineered with user-friendly features like a standard harsh environment display and four 4-20mA analog outputs for versatile integration with various systems.
