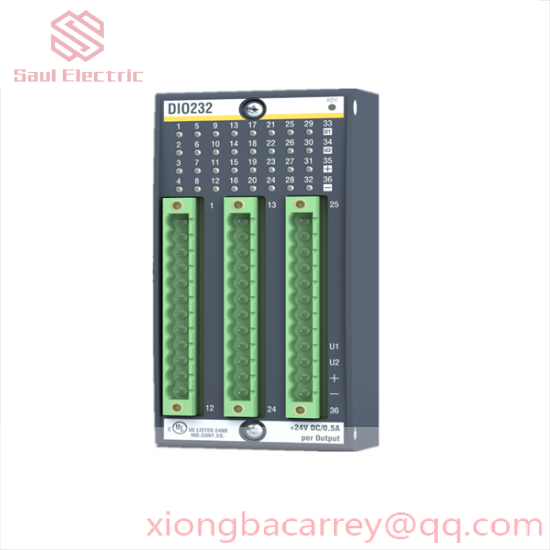

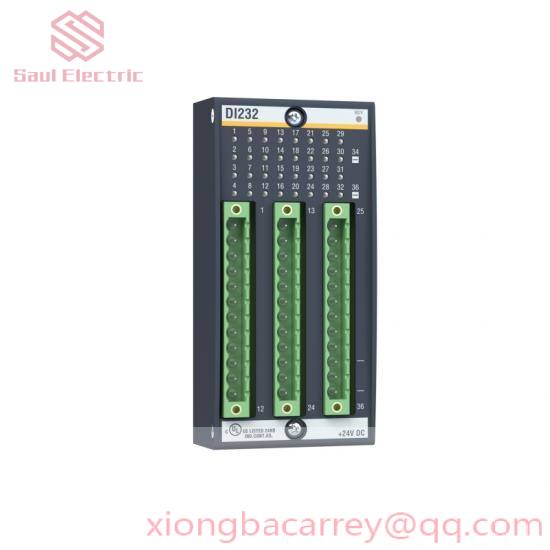

Bachmann DI0232 Digital Input/Output Module, High Precision Industrial Control Solution

Bachmann DI0232 Digital Input/Output Module, High Precision Industrial Control Solution

    The Bachmann DI0232 is a high-performance digital input/output module designed for sophisticated industrial automation applications. With robust features, this module is perfect for integrating precise digital signals into complex machinery systems.

Module Type:Digital I/O Module

Number of Inputs:16 to 32

Input Voltage:24 VDC

Input Filter:40µs..365ms configurable

Current Consumption:80 mA at 5 V

Number of Outputs:Max. 16

Output Current:24V/ 0.5A per channel

Total Current (max):8 A

Isolation:Yes

Interrupt Channels:8

Delay:35µs

    The Bachmann DI0232 Digital Input/Output Module is an essential component for industrial automation systems. It offers high-speed digital signal processing with 16 channels of digital input and 16 channels of digital output. Designed with advanced filtering capabilities, this module ensures accurate and reliable data transmission. Its isolation feature protects against electrical disturbances, ensuring stable operation in harsh environments. The module supports up to 8 interrupt channels, providing real-time response to critical system events. With a delay time of just 35µs, it enables fast response times necessary for modern industrial applications. Compatible with a wide range of input and output voltages, the DI0232 is easy to integrate into existing systems. Installation is straightforward, with clear wiring diagrams included. For maintenance, the module features diagnostic LEDs for quick troubleshooting. Invest in the Bachmann DI0232 for superior control and efficiency in your industrial processes.
