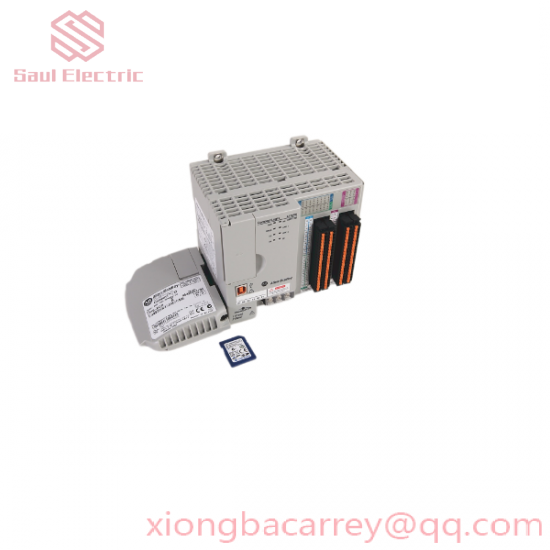

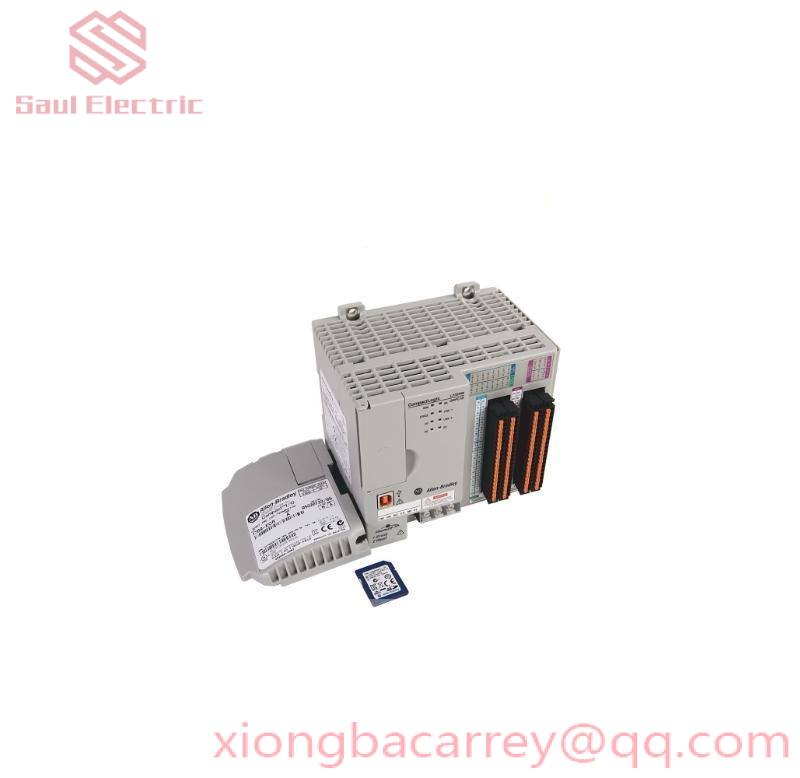

Allen-Bradley 1769-L27ERM-QBFC1B CompactLogix L2 Ethernet Processor Module

Allen-Bradley 1769-L27ERM-QBFC1B CompactLogix L2 Ethernet Processor Module

    The Allen-Bradley 1769-L27ERM-QBFC1B CompactLogix L2 Ethernet Processor Module provides advanced automation capabilities with dual Ethernet ports and Device-Level Ring (DLR) functionality. It integrates high-speed counters, analog inputs/outputs, digital I/Os, and supports up to 4-axis CIP motion control with kinematics, making it ideal for industrial machinery and process automation.

Memory:1MB

Ethernet Ports:2 x EtherNet/IP Ports

USB Port:1 x USB Programming/Downloading Port

Digital Inputs:(16) 24V DC Digital Inputs

Digital Outputs:(16) 24V DC Digital Outputs

Analog Inputs:(4) Universal Analog Inputs

Analog Outputs:(2) Universal Analog Outputs

High-speed Counters:(4)

Expansion Capability:4 I/O Expansion

Nodes:16 Ethernet IP Nodes

Motion Control:4 Axis CIP motion with Kinematics function

Power Supply:24V DC Power

    The Allen-Bradley 1769-L27ERM-QBFC1B is a robust and reliable Ethernet processor module designed for industrial automation environments. It integrates dual Ethernet ports with DLR capability, enabling seamless network connectivity and redundancy. With 1 MB of memory, it can handle complex automation tasks efficiently. This model supports up to 16 Ethernet IP nodes, making it suitable for large-scale systems. It includes 16 digital inputs and outputs for precise control, 4 universal analog inputs and outputs for flexible signal handling, and 4 high-speed counters for accurate counting applications. The 4-axis CIP motion with kinematics function allows for advanced motion control, enhancing the precision and efficiency of automated processes. The module comes equipped with a USB programming/downloading port for easy configuration and maintenance. The compact design ensures easy installation in tight spaces, and its robust construction withstands harsh industrial conditions. Ideal for use in manufacturing lines, packaging systems, and other industrial applications where high performance and reliability are paramount.
