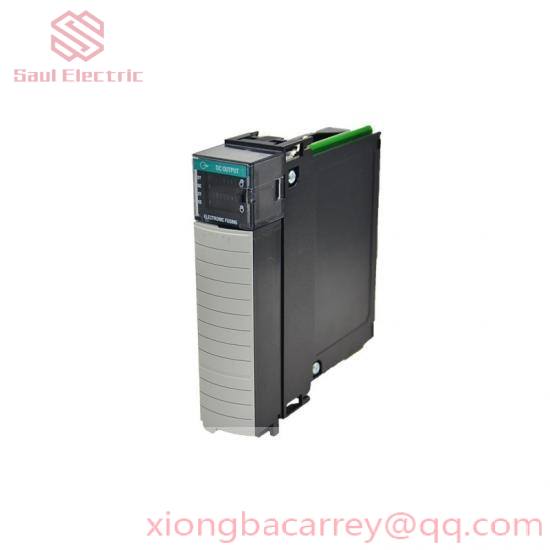

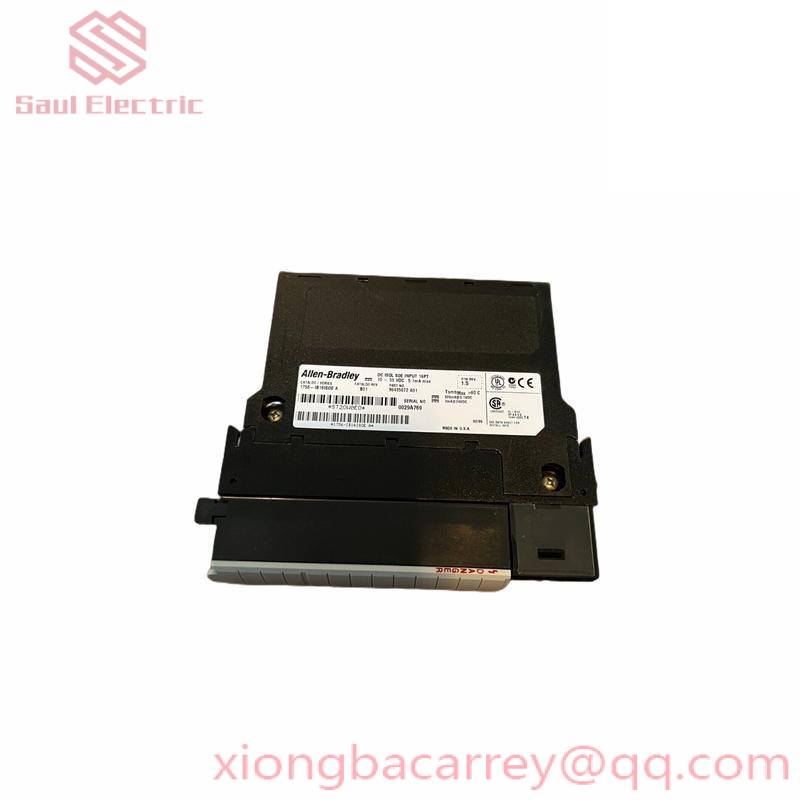

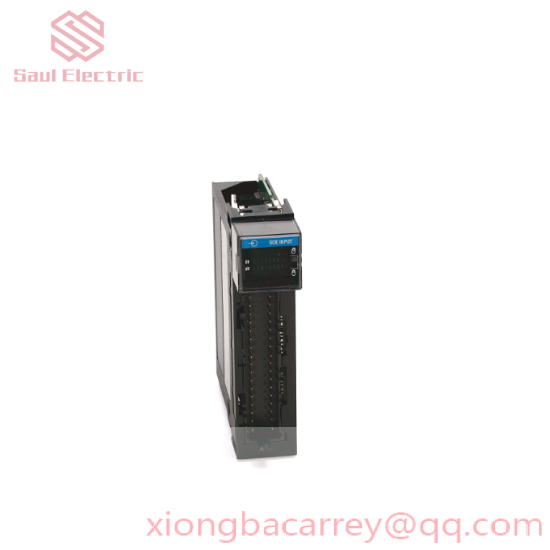

Allen-Bradley 1756-IB16I Discrete Input Module for ControlLogix Systems

Allen-Bradley 1756-IB16I Discrete Input Module for ControlLogix Systems

    The Allen-Bradley 1756-IB16I Digital Input Module provides reliable and high-speed digital signal acquisition for industrial automation systems, ensuring seamless integration and operation across various industries.

Manufacturer:Allen-Bradley

Model Number:1756-IB16I

Module Type:Discrete Input Module

Inputs:16 Individually Isolated Channels

Input Voltage:120 Volts AC

Operating Voltage Range:79-132 Volts AC

Maximum Operating Current:15 milliamperes at 132 Volts AC, 47-63 Hertz

Compatibility:Allen-Bradley ControlLogix Systems

Certifications:CE, UL, RoHS Compliant

    The Allen-Bradley 1756-IB16I Digital Input Module is designed for use in harsh industrial environments. This module offers sixteen channels of isolated digital input, each capable of handling up to 10 mA at 24 VDC. With a response time of less than 1 ms, it ensures fast and accurate data acquisition, which is crucial for real-time control applications.

    Key design highlights include:

    – Isolated inputs for improved noise immunity and enhanced reliability

    – Robust construction suitable for wide operating temperature ranges

    – Compliance with international safety standards (CE, UL, CSA, IECEx)

    This digital input module integrates seamlessly with Allen-Bradley’s ControlLogix platform, allowing for efficient and effective management of digital signals within your automation system. Installation is straightforward, with clear instructions provided in the user manual. It is compatible with standard mounting rails and can be easily integrated into existing setups.
