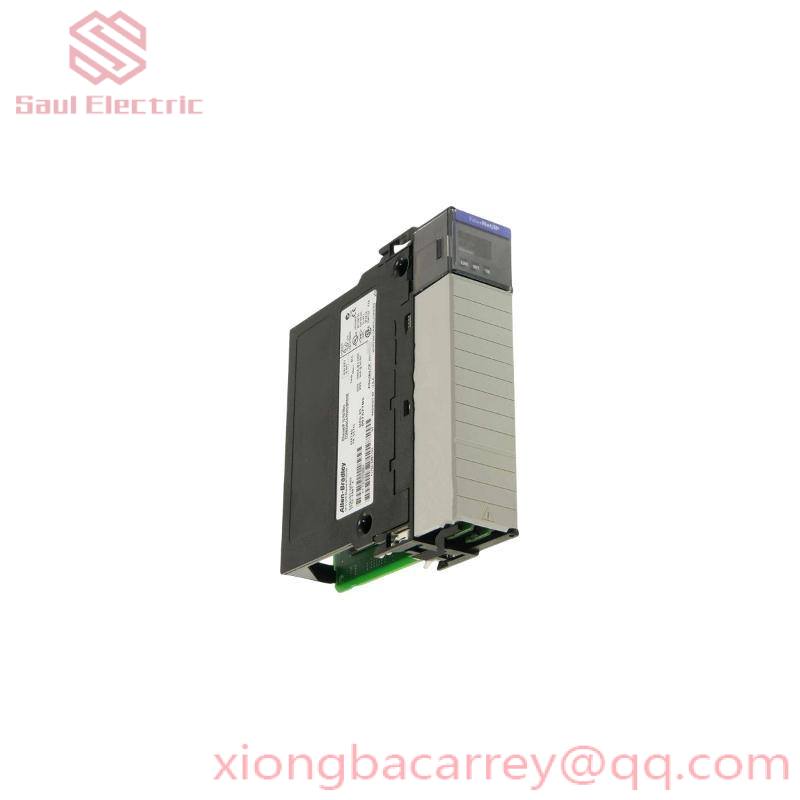

Allen-Bradley 1756-ENBT/A ControlLogix EtherNet/IP Module, High-Speed Data Transfer

Allen-Bradley 1756-ENBT/A ControlLogix EtherNet/IP Module, High-Speed Data Transfer

    The Allen-Bradley 1756-ENBT/A ControlLogix EtherNet/IP Module provides seamless communication between devices in industrial automation environments. It supports high-speed data transfer over Ethernet/IP networks, enabling efficient control and monitoring of production processes.

Model Number:1756-ENBT/A

Manufacturer:Allen-Bradley

Communication Protocol:EtherNet/IP

Communication Speed:10/100 Mbps

Power Supply:24V DC

Current Consumption:3 mA at 24 VDC

Mounting Type:Chassis

Interface:Ethernet, USB

Environmental Conditions:Operating Temperature: 0 – 60°C, Humidity: 5 – 95% non-condensing

Isolation:30 V continuous

Vibration Resistance:2 G

Shock Resistance:30 G

Connection Cable Compliance:802.3 compliant shielded or unshielded twisted pair

Dimensions:Depends on the chassis

    This Allen-Bradley 1756-ENBT/A ControlLogix EtherNet/IP Module is specifically designed for industrial control systems, providing a robust and reliable solution for networking and communication. It features a high-speed data rate of 10/100 Mbps, ensuring efficient data transfer across the network. The module is powered by 24 VDC and draws only 3 mA of current, making it energy-efficient and suitable for long-term operation. Its mounting type is chassis-mounted, offering easy installation and maintenance.

    Designed for demanding industrial environments, this module can withstand vibrations up to 2 G and shocks up to 30 G, ensuring its durability. It operates within a wide temperature range from 0 to 60°C, and maintains functionality under humidity levels ranging from 5% to 95% without condensation. The module comes with an open-type enclosure, making it ideal for a variety of installations.

    With its 802.3 compliant connection, this module supports both shielded and unshielded twisted pair cables, providing flexibility in installation. Its isolation voltage of 30 V continuous ensures electrical safety and reliability, making it an excellent choice for critical industrial applications. By integrating this module into your network, you can achieve seamless communication between devices, enhancing overall system performance and efficiency.
