AB 1203-GD1 Control Module for High Performance Automation Systems

AB 1203-GD1 Control Module for High Performance Automation Systems

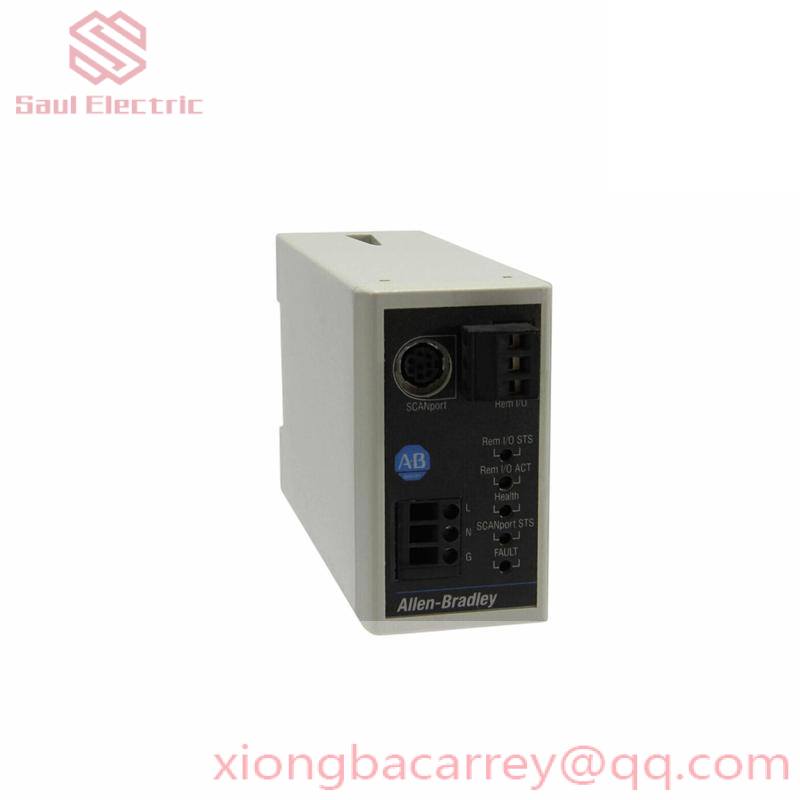

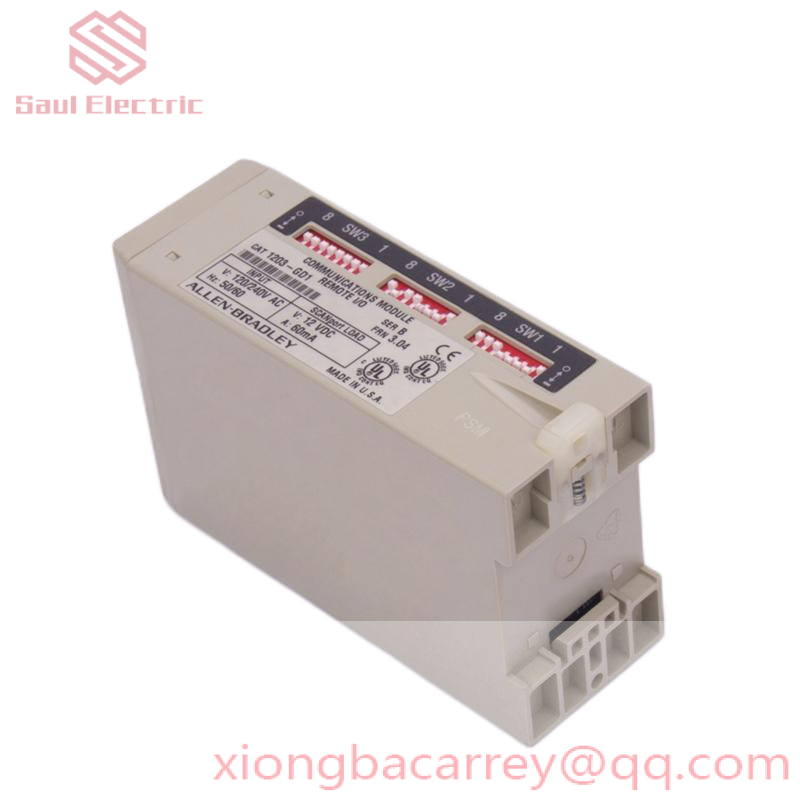

    The Rockwell AB 1203-GD1 Control Module is a high-performance solution designed for industrial automation systems. It offers robust functionality and reliability, making it ideal for applications requiring precise control and monitoring.

Manufacturer:Rockwell Automation

Model:AB 1203-GD1

Type:Control Module

Compatibility:Compatible with various industrial automation systems

Operating Voltage:10-30V DC

Current Consumption:Max 50mA

Input Channels:6 x Analog Inputs

Sampling Rate:Up to 100 samples per second

Accuracy:+/- 0.1% of full scale

Operating Temperature Range:-25°C to +70°C

Storage Temperature Range:-40°C to +85°C

Dimensions:50mm x 70mm x 15mm

Weight:Approx. 100g

Certifications:CE, RoHS compliant

    The Rockwell Automation AB 1203-GD1 Control Module offers high precision data acquisition and control capabilities. This module supports a wide range of input and output signals, making it suitable for a variety of applications including process automation, manufacturing, and industrial control systems. The design incorporates advanced filtering technology for enhanced signal integrity and reliability. Each channel on the module can independently select from six hardware analog-to-digital filter frequencies, ensuring accurate and fast channel acquisition. The module also includes error checking mechanisms and alarm detection for high, high-high, low, and low-low thresholds, ensuring operational safety and efficiency. Users can configure software filters for each input channel, providing flexibility in setup and maintenance. Additionally, the module supports user-defined range calibration and temperature display in both Celsius and Fahrenheit, enhancing usability. The module comes equipped with fault reporting and diagnostic capabilities, supporting the identification of issues within logic programs and facilitating quick troubleshooting. With its robust design and versatile features, the Rockwell Automation AB 1203-GD1 Control Module is a reliable choice for modern industrial automation needs.
